| Special tools and workshop equipment
required |
|
|
|
| |
|

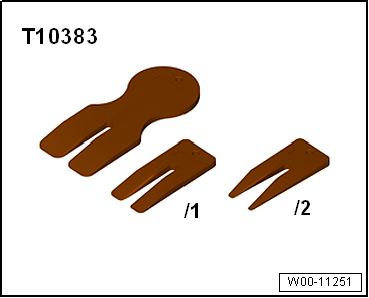

Wedges -T10383 |
| – |
Fold down rear seat backrest. |
| – |

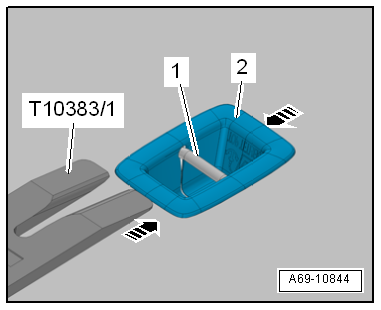

Release locking lugs using wedge -T10383/1--arrows-. |
| – |
Lever cover -2- for Top Tether
child seat anchor upwards off rear seat backrest. |
| – |
Carefully pull cover off Top Tether child seat anchor
-1- and remove it. |
| Installation is carried out in reverse order. |
| |
→ Chapter „Assembly overview - rear child seat anchors“ |
|
|
|
