Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - trailing arm, except for e-Golf

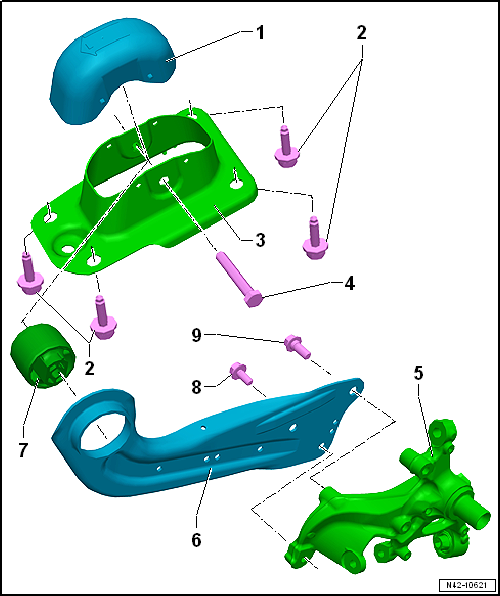

This assembly overview covers the torsion beam axle trailing arm (except e-Golf): a bolt torqued to 50 Nm plus 45°, the mounting bracket, and a second bolt at 90 Nm plus 90°.
| 1 - | Cover |
| 2 - | Bolt |
| Renew after removing |
| 50 Nm +45° |
| 3 - | Mounting bracket |
| 4 - | Bolt |
| Renew after removing |
| 90 Nm +90° |
| 5 - | Wheel bearing housing |
| Different versions possible. Refer to → Electronic Parts Catalogue “ETKA” |
| 6 - | Trailing arm |
| Removing and installing → Chapter |
| 7 - | Bonded rubber bush |
| Note correct installation position |
| Renewing → Chapter. |
| 8 - | Bolt |
| M12 x 1.5 |
| Renew after removing |
| 70 Nm +90° |
| 9 - | Bolt |
| M14 x 1.5 |
| Renew after removing |
| 70 Nm +90° |
