Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - brake caliper FS III

Note: install every part supplied in the repair kit, use only methylated spirits for cleaning, and apply a thin coat of lithium grease -G 052 150 A2- to the Volkswagen Golf Mk7 FS III cylinder and piston.

When carrying out repairs, install all parts supplied in repair kit.
Use only methylated spirits for cleaning the brake.
Apply thin coat of lithium grease -G 052 150 A2- to brake cylinder, piston and seal.

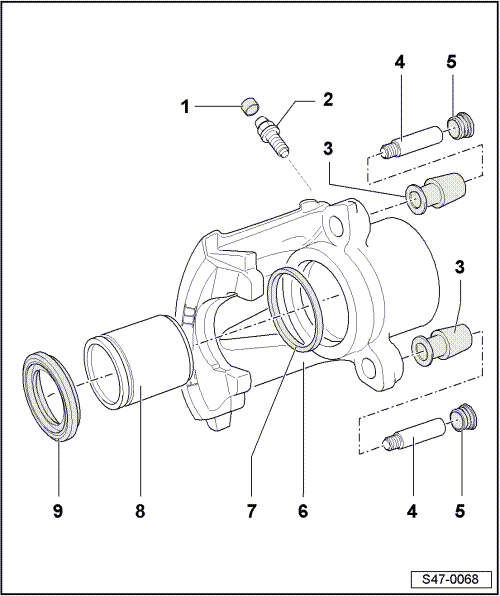

Assembly overview - brake caliper FS III

1 -  Dust cap
Fit onto bleeder valve
2 -  Bleeder valve
Before screwing in, grease thread with thin coat of lithium grease -G 052 150 A2-
10 Nm
3 -  Bearing bush
Insert into brake caliper.
4 -  Guide pin
30 Nm
5 -  Cover caps
Insert into sleeve bearing.
6 -  Brake caliper
7 -  Sealing ring
Removing and installing → Chapter
8 -  Piston
Apply thin coat of assembly paste G 052 150 A2 to piston before installing.
Removing and installing → Chapter
7 -  Protective cap
Removing and installing → Chapter
When inserting piston, take care not to damage protective cap
