| If the seat padding in a vehicle with seat heating is
renewed, then the respective seat heating element must also be
renewed. |
|
|
|
| – |
Separate seat cover from seat padding
→ Chapter. |
| – |

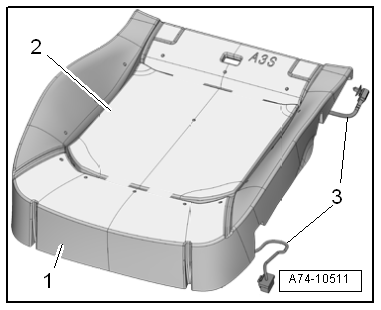

Cut through wire -3- right at
old seat heating element -2-. |
 Note
| The old seat heating elements remain fitted on the seat
padding -1- and the new heating
elements are bonded in onto the old ones. |
| Install in reverse order, but note the following: |
| – |
Thread wire -3- through cable
guide. |
| – |
Align new heating elements on seat padding. Do not pull off
the protective films for this. |
| – |
Pull protective films off heating elements one after the
other. Ensure to not damage the heating elements. |
| – |
Bond in new heating elements so that they coincide with the
old ones and are free of creases. |
| – |
Place connections of the individual heating elements on
bottom of recesses. |
| |
→ Chapter „Assembly overview - cover and padding for seat pan“ |
| |
→ Chapter „Assembly overview - seat heating element“ |
| |
→ Chapter „Assembly overview - front backrest“ |
| |
→ Chapter „Assembly overview - front seat“ |
|
|
|
