Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - air filter housing

This assembly overview covers the Volkswagen Golf Mk7 air filter housing: air ducts mounted on the lock carrier, a 2 Nm bolt, and the lower filter housing section — remove dirt, leaves and salt residue when servicing.

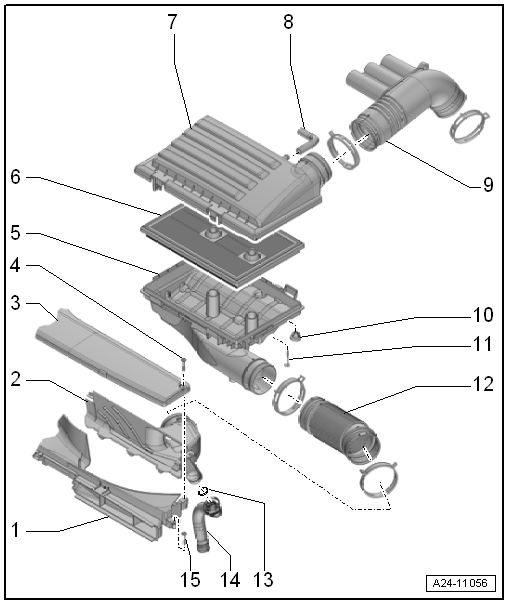

Assembly overview - air filter housing

1 -	Air duct (bottom section)

On lock carrier

2 -	Air duct (top section)

On lock carrier

3 -

Cover

For air duct

4 -

Bolt

2 Nm

5 -	Lower part of air filter

Remove dirt, leaves and salt residues.

6 -	Air filter element

Use only genuine air filter elements → Electronic Parts Catalogue.

Change intervals → maintenance table

Removing and installing → Booklet

7 -	Upper part of air filter

Remove dirt, leaves and salt residues.

8 -

Hose

For crankcase breather

9 -	Air intake hose

10 -	Rubber buffer

11 -

Bolt

1.5 Nm

12 -	Air intake hose

13 -

O-ring

Renew if damaged

14 -	Water drain hose

Clean.

15 -

Bolt

2 Nm
