Volkswagen Golf Mk7 Owners Manual: Instrument overview

Fig. 12 is the labelled instrument cluster of the Volkswagen Golf Mk7, with a description of every dial: the rev counter, whose red zone marks the maximum engine speed permitted in each gear once the engine is warm, alongside the speedometer, fuel gauge, coolant temperature gauge and the central multifunction display. Read the safety warnings first, then use this page to match a dial or needle position on your own dash to its explanation.

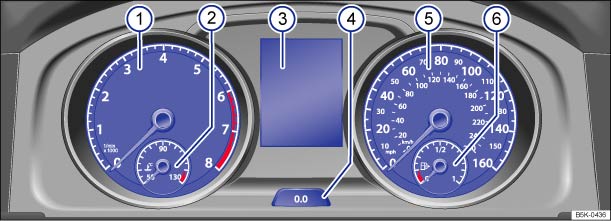

Fig. 12 Instrument cluster in the dash panel

First read and observe the introductory information and safety warnings 

Descriptions of the instruments  :

  1. Rev. counter (running engine speed in revolutions x 1,000 per minute).

    The start of the red zone on the dial indicates the maximum engine speed that may be used in each gear when the engine is warm and after it has been run in properly. You should change up a gear or move the selector lever to D (or lift your foot off the accelerator) before the needle reaches the red zone  .

  2. Coolant temperature display   .
  3. Displays   .

  4. Reset, set and display button   .

  5. Speedometer
  6. Fuel gauge   .

NOTICE

  • When the engine is cold, avoid high engine speeds, driving at full throttle and overloading the engine.
  • The needle on the rev counter should only briefly point into the red area., otherwise engine damage may be incurred.

Changing up a gear early will help to save fuel and minimise engine noise.

    Questions & answers

    Instrument overview — Volkswagen Golf Mk7

    What does the Golf Mk7 instrument cluster overview show?
    The diagram labels the rev counter (engine speed in RPM × 1,000), the speedometer, the fuel gauge with the low-fuel warning lamp, and the coolant temperature display with its warning zone.
    What does the red zone on the Golf Mk7 rev counter mean?
    The red zone indicates the maximum allowed engine speed for each gear. You should change up or lift off the accelerator before the needle reaches this area. The exact start of the red zone varies by engine.
    How does the Golf Mk7 coolant temperature display work?
    The temperature gauge sits next to the speedometer. Under normal conditions the needle stays in the middle section. If it enters the red warning zone, the engine is overheating and you should stop immediately.
    Where is the fuel gauge on the Golf Mk7 and when does the warning lamp come on?
    The fuel gauge is next to the rev counter. A low-fuel warning lamp illuminates when approximately 8 litres remain in the tank, giving you enough range to reach a filling station.
    Does the Golf Mk7 rev counter work differently for diesel engines?
    The scale is the same, but TDI diesel engines have a lower maximum RPM, so the red zone starts earlier on the dial compared to the TSI petrol engines.
