Volkswagen Golf Mk7 Service & Repair Manual: Cavity sealing, overview of body
Note: the areas indicated in this Volkswagen Golf Mk7 bottom-view diagram have been treated with cavity sealant and must be resealed following any repair — chassis legs, sills and pillar cavities.

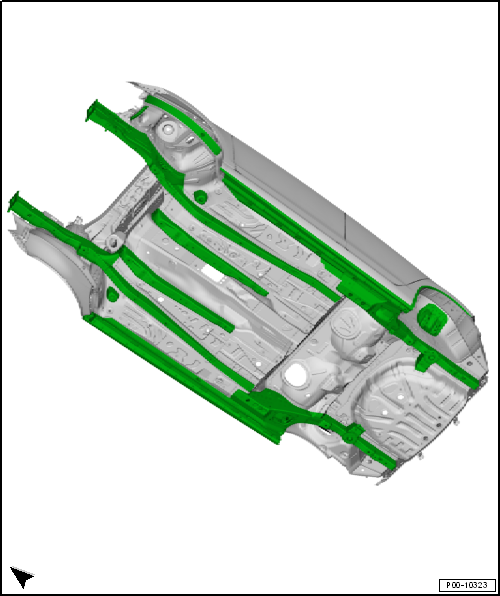

| Cavity sealing, bottom view of body |
Note| The indicated areas have been treated with cavity sealant and must be resealed following repairs. |

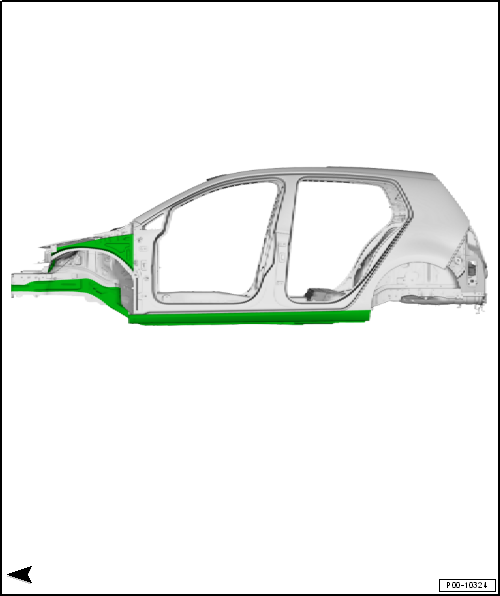

| Cavity sealing, side view of body |
| Illustration shows left side. The right side is the mirror image. |
Note| The indicated areas have been treated with cavity sealant and must be resealed following repairs. |
