Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - flap for charging bay

This assembly overview covers the e-Golf charging bay flap in the radiator grille: its mounting bolts (2 Nm), actuator, and the immediate charge button -E766- with its own 2 Nm bolts.

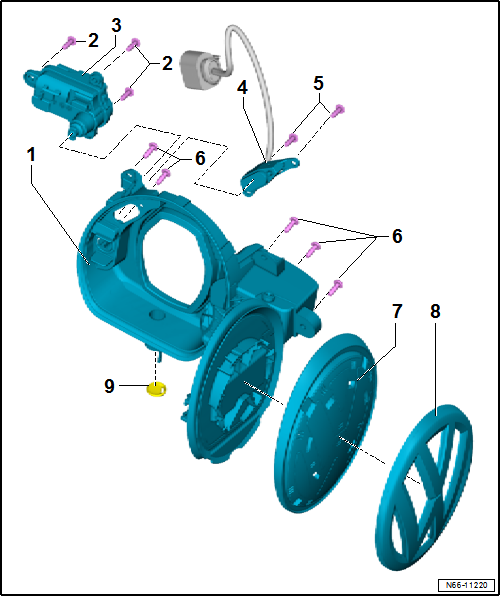

Assembly overview - flap for charging bay

1 -  Flap for charging bay
  • Removing and installing
2 -  Bolt
  • For actuator
  • 2 Nm
  • Qty. 3
3 -  Actuator

Removing and installing

4 -  Immediate charge button -E766-
  • Removing and installing → Electrical system; Rep. gr.94
5 -  Bolt
  • For button
  • 2 Nm
  • Qty. 2
6 -  Bolt
  • For flap for charging bay
  • 2 Nm
  • Qty. 5
7 -  Bracket
8 -  Emblem
  • Removing and installing.
9 -  Valve
  • For water drainage
Removing and installing radiator grille

    Questions & answers

    Assembly overview - flap for charging bay — Volkswagen Golf Mk7

    What is the Golf Mk7 e-Golf charging bay flap?
    A hinged flap in the radiator grille that covers the charging socket. It has an actuator (2 Nm bolts) and the immediate charge button -E766-.
