| Special tools and workshop equipment
required |
|
|
|
| |
|
Torque wrench -V.A.G 1783- |
Note
| Removal and installation are described only for the left exterior
mirror. The right side is similar. |
| – |
Remove front door trim
→ General body repairs, interior; Rep. gr.70. |
| – |

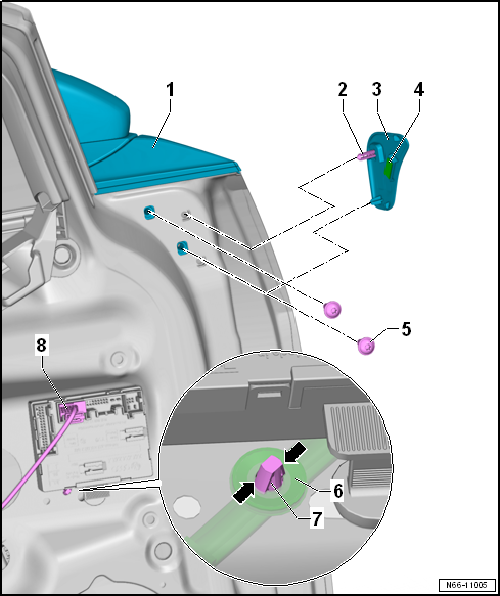

Unclip cover -3- detaching adhesive
tape -4- while doing so. |
| – |
Remove loudspeaker
→ Electrical system; Rep. gr.91. |
| – |
Reach through opening in loudspeaker, and disconnect connector
-8- for exterior mirror-1-. |
| – |
Unscrew bolts -5- from exterior mirror
-1-. |
| – |
Remove control unit for door, and detach clip
-7- installed behind it -arrows-. |
| – |
Thread electric wire -6- through hole
in door, and remove exterior mirror -1-. |
| Install in the reverse order of removal observing the following: |
| – |
If adhesive tape of clip are damaged, remove cover. |
