Volkswagen Golf Mk7 Service & Repair Manual: Programming sliding sunroof adjustment control unit -J245-
Adaptation of the Volkswagen Golf Mk7 sunroof control unit -J245- is required whenever the glass panel, motor or tilt mechanism have been renewed — this page gives the procedure for establishing new reference points, noting the anti-trap function is switched off during adaptation.
Note-
If a glass panel, motor or tilt mechanism have been renewed, adaption needs to be performed. -
The anti-trap function is switched off during adaptation.
| Establishing reference points of sliding sunroof motor |
| Ignition is switched on. |

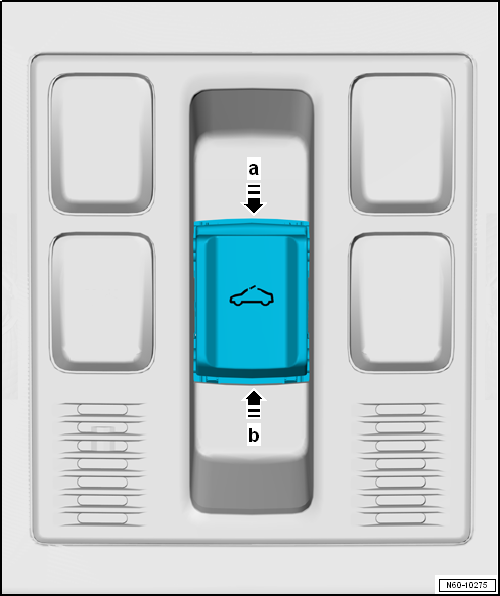

| – | Pull button backwards -arrow a-, and hold it in this position during entire programming process (approx. 20 sec). |
| – | When establishing reference points, glass panel first closes and then moves approx. 200 mm towards the rear. |
| – | Once glass panel has closed again, the programming run is finished and rotary knob can be released. |
Questions & answers
Programming sliding sunroof adjustment control unit -J245- — Volkswagen Golf Mk7
When does the Golf Mk7 sunroof control unit need programming?
After renewal of the glass panel, motor or tilt mechanism. The adaptation establishes reference points for the end-stop positions and re-enables the anti-trap function.
Is the Golf Mk7 anti-trap function active during sunroof adaptation?
No. The anti-trap function is switched off during the programming procedure. Keep the area clear during adaptation.
How do I programme the Golf Mk7 sunroof control unit?
Follow the step-by-step procedure: close and open the panel in sequence, hold buttons at defined positions, and let the system learn its travel limits. Detailed steps are in the manual.
