Using assembly tools -3301-/-3346- and torque wrench -V.A.G 1332-, this page covers lowering the Volkswagen Golf Mk7 multi-link rear axle (FWD, except e-Golf) with its subframe and attachments — loosen the wheel bolts first.

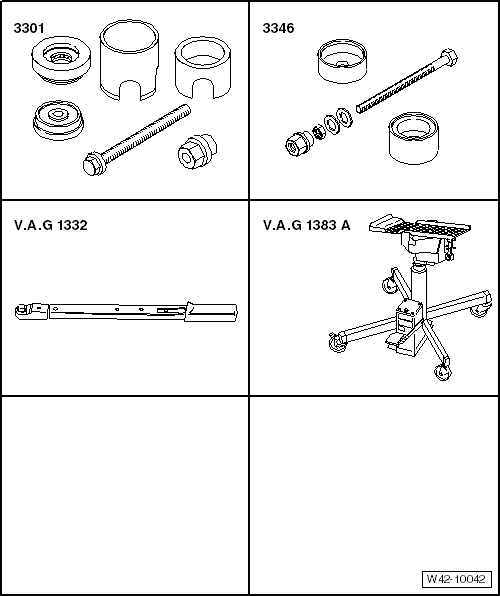

| Special tools and workshop equipment required |
| Torque wrench -V.A.G 1332- |
| Engine and gearbox jack -V.A.G 1383 A- |
| Lower subframe with attachments. |
| – |
Unbolt brake calipers on both sides of vehicle and suspend
from body. |
| – |
Remove springs
→ Chapter. |
| – |
Remove rear silencer of exhaust system
→ Rep. gr.26. |
| Vehicles with vehicle level sender |
|
|
|
| – |

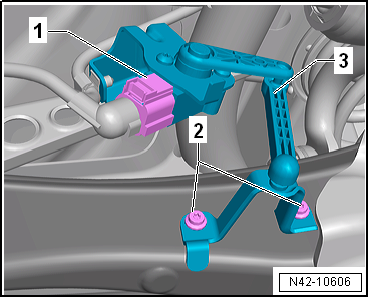

Disconnect connector -1-. |
| Continuation for all vehicles |
|
|
|
| – |

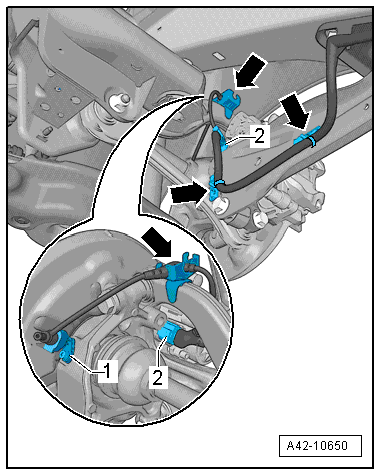

Unplug electrical connector -1-
from ABS speed sensor on both sides and move clear. |
| – |
Unplug electrical connector -2-
from electromechanical parking brake motor on brake caliper on
both sides. |
| – |
Detach electrical wiring harness from retainers
-arrows- and move clear. |
|
|
|
| – |

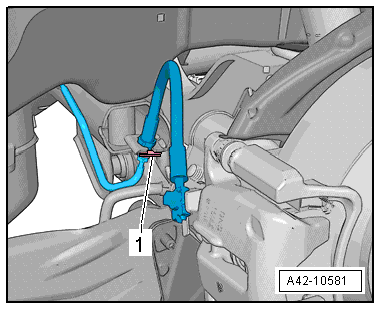

Pull out retaining clip -1- on
both sides of vehicle. |
| – |
Free brake lines from holder. |
 Note
|
|
|
| – |

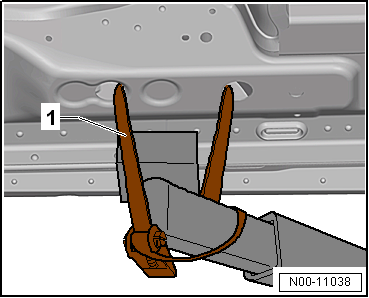

Use tensioning straps -T10038--1-
to strap vehicle to support beams of lifting platform on both
sides. |
WARNING
| If the vehicle is not strapped down, there is a
great danger that the vehicle will slip off the lifting
platform! |
|
| – |
Fix subframe at both forward bolts
→ Chapter. |
|
|
|
| – |

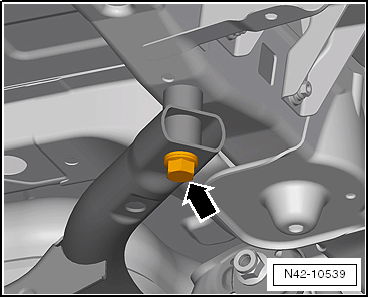

Unscrew rear right bolt of subframe
-arrow-. |
|
|
|
| – |

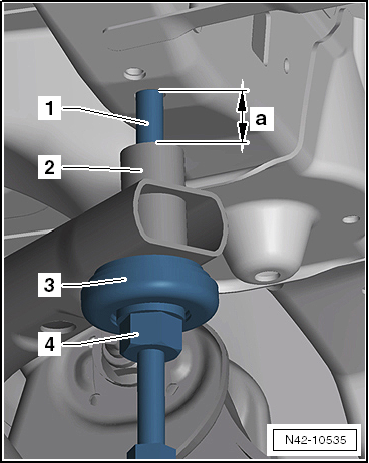

Screw spindle -3346/2- into thread of longitudinal member
using thrust piece of assembly tool -3301- and nut -3346/3-. |
| 3 - |
Thrust piece from assembly tool -3301- |
| – |
Unscrew rear left bolt of subframe. |
| – |
Turn nut -3346/3- on spindle -3346/2- until subframe is
lowered by -a- = 40 mm. |
| Installing subframe with attachments |
| Install in reverse order of removal, observing the
following: |
| → Chapter „Torque settings for wheel bolts“ |
| Exhaust pipes double clamp
→ Rep. gr.26. |
| On vehicles with vehicle level sender, carry out basic
settings for wheel damper electronics → Vehicle
diagnostic tester. |
| On vehicles with vehicle level sender, carry out basic
adjustment of headlights
→ Electrical system; Rep. gr.94. |
| – |
When does wheel alignment have to be checked
→ Chapter? |
|
|
|
