Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - rear brake caliper

Note: new Volkswagen Golf Mk7 rear brake calipers arrive pre-filled with brake fluid and pre-bled — this assembly overview stresses only methylated spirits for cleaning.

When carrying out repairs, install all parts supplied in repair kit.
Use only methylated spirits for cleaning the brake.
New brake calipers are filled with brake fluid and are pre-bled.

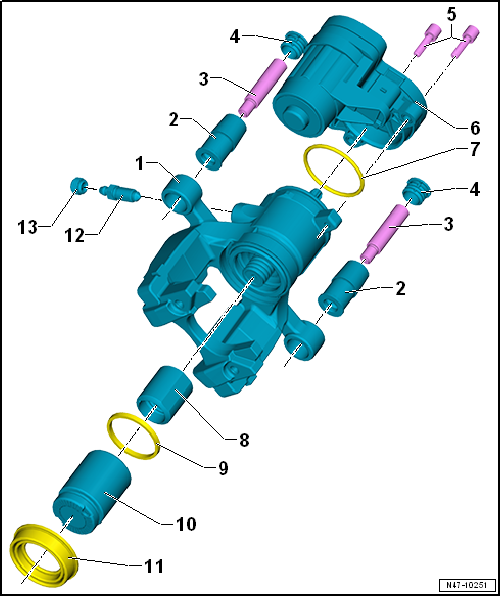

Assembly overview - rear brake caliper

1 -  Brake caliper
2 -  Damper bushes
3 -  Guide pin
4 -  Cover caps
5 -  Hexagon socket head bolt
8 Nm
6 -  Parking brake motor
7 -  Sealing ring
Renew
8 -  Thrust nut
Removing and installing not possible
9 -  Sealing ring
Removing and installing not possible.
10 -  Piston
Removing and installing not possible.
11 -  Protective cap
Removing and installing → Chapter
  Note
The brake caliper does not need to be removed in order to renew the protective cap; do not unbolt the break hose.
12 -  Bleeder valve
Apply thin coat of assembly paste G 052 150 A2 to thread before screwing in.
10 Nm
13 -  Dust cap
