| Vacuum pump for brake servo, diesel
vehicles |
| Vacuum pump for 4-cylinder diesel engine (1.6 l, common
rail): |
| The vacuum pump is installed in the oil pump. |
| – |
Removing and installing vacuum pump/oil pump
→ Rep. gr.17. |
|

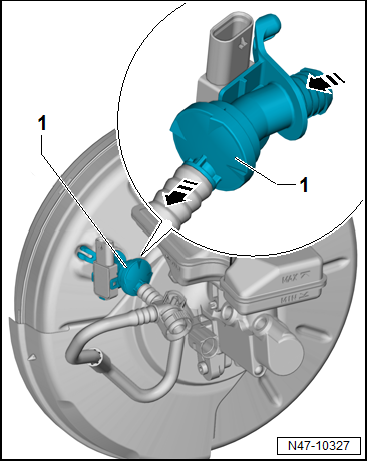

| Checking non-return valve |
|
|
|
| – |
Carefully pull non-return valve with vacuum line
-1- out of brake servo. |
| – |
Blow small amount of air through non-return valve
-1- in one direction first, then in
other direction. |
| Air must pass through non-return valve
-1- in -direction of arrow-. |
| The non-return valve -1- must
remain closed in the opposite -direction
of arrow-. If this is not the case, renew non-return
valve or, if necessary, complete vacuum line. |
 Note
| When installing the vacuum line with non-return valve,
ensure the correct installation position relative to the brake
servo. |
|
|
|
